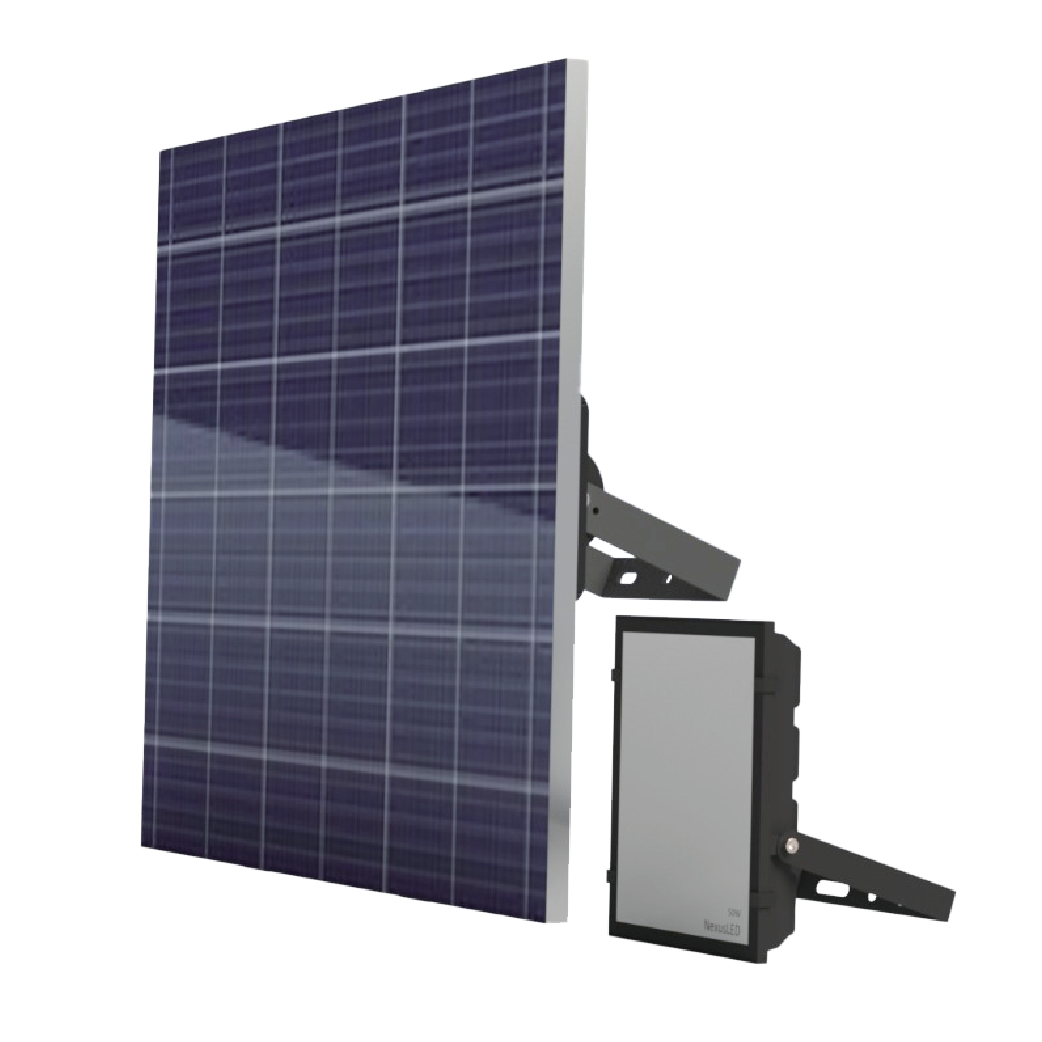

Product: Sonar LED Floodlight

Sonar LED Floodlight

Solar Energy System provides the whole range of applications for floodlight, bulb, linear light or others suitable with DC input supply.

Battery Type: LiFePo4

Depth Of Discharge DOD: < 80%

Charge/Discharge Temperature: 0° ~ 60°C/-20° ~ 60°C

Storage Temperature: -20°C ~ +45°C

Working Mode: 12hrs (4hrs – 100%, 2hrs – 60%, 6hrs – 40%)

Charging Time: 4 ~ 4.5hrs direct sunlight

Autonomy Day: 2 consecutive rainy days

Share it :

Product Specifications

AC Input
Color Rendering Index(CRI)
>70
Beam Angle
120° (10°/15°/30°/60°/90°)
Operating Temperature
-20°C~+35℃
Storage Temperature
-20°C~+80°C
Colour Temperature
3000K-6000K
Lifetime(typical)
50,000 hours at ta 25°C
LED Lumen Maintenance
LM80
Electrical Safety
>70
Compliant
IEC, SIRIM
Heatsink material
Aluminium Casting
Luminaire Cover Material
Frosted Tempered Glass
IP Rating
IP66
Application Area
Sign board lights, Compound Lightings, Area Lightings
Product
Sonar 30-40

Sonar 50-60

Sonar 70-90

Sonar 100-120

Sonar 130-150

Wattage (W)
30-40W

50-60W

70-90W

100-120W

130-150W

Luminous flux (Im)
>150

>150

>150

>150

>150

Luminous flux (Im)
4,500

7,500

10,500

15,000

19,500

Length (mm)
1100

1190

1500

1870

2194

Width
670

670

670

670

670

Height(mm)
400

400

400

400

400
